IMPORTANT: Before You Start!
You will need network access to reach the Gooddesign printers at Covo. This should have been done for you when signing up for Gooddesign printing. If you have any trouble, please inquire with anyone on the Gooddesign team.

Mac OS Instructions

1. Download and install the appropriate printer driver

2. Click on the Apple icon in the top left of your screen and click "System Preferences..." from the drop down
3. Click "Printers & Scanners"
4. Click the "+" symbol located directly underneath your printer list and click "Add Printer or Scanner"
5. Click the "IP" tab
6. In the "Address" field, enter one of the following IP addresses depending on which copier you want to setup.

  • Oce PlotWave 350 (black & white plotter): 10.1.12.10

  • HP DesignJet T2300 (full color plotter): 10.1.12.11

  • Xerox WC 7845 (color copier): 10.1.12.12

7. In the "Protocol" field, select "Line Printer Daemon - LDP" from the drop down
8. In the "Name" field, you may choose to nickname the printer for convenience (example: Covo Printer)

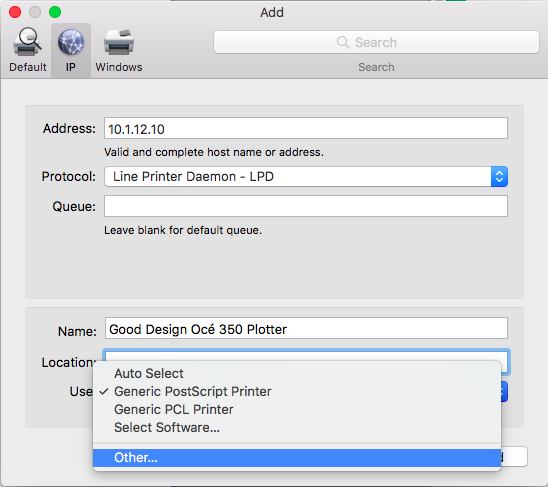

9. Your window should now look something like this...

q

10. Both the HP DesignJet T2300 and the Ricoh Aficio MP c3502 will automatically select the correct driver. For the Oce PlotWave 350, you have to select "Other..." from the "Use:" drop-down and select the "ocpw3505.ppd" driver file you downloaded in step #1. The exact location of the file from the downloaded driver folder is "MacOSX/English/StandardFonts/ocpw3505.ppd".
11. Click "Add"
12. A screen titled "Setting Up '[Printer Name]. . .'" will appear.
13.Click "OK".

Microsoft Windows INSTRUCTIONS

1. Download and install the appropriate printer driver

2. Open "Devices and Printers" (search for it from the Windows/Start menu)
3. Click "Add Printer"
4. Click "The printer that I want isn't listed"
5. Choose "Add a printer using a TCP/IP address or hostname"
6. Click "Next"
7. In the "Hostname or IP Address" field, enter one of the following IP addresses depending on which copier you want to setup.

  • Oce PlotWave 350 (black & white plotter): 10.1.12.10

  • HP DesignJet T2300 (full color plotter): 10.1.12.11

  • Xerox WC 7845 (color copier): 10.1.12.12

8. Your window should now look something like this...

9. Click "Next"
10. Your computer will automatically download and install the printer driver
11. When prompted for the "Printer name" select a friendly nickname to refer to the printer (Example: Covo Printer)
12. Click "Next"
13. If your computer prompts you to share the printer, click "Do not share this printer" then "Next"
4. Click "Finish"
